Products Description
Road sweeper Truck(also called street sweeper,road sweeper,municipal vehicle,sweeping car,street cleaner sweeper and cleaning truck,isuzu truck mounted sweeper,street cleaning vehicle) is suitable for brushing,suction and transportation of dusts,leaves,mud,sol,sand,stone chips,gravels and other small particles on the ground of city roads and areas.This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
The road sweeper truck is composed by chassis,auxiliary engine,air blower,magnetic valve,debris bin,water bin,sweeping system,suction system,water sprinkling system,hydraulic system,electrical control system,etc. Four brooms Sweeping system and suction system combine working,high efficient.Water sprinklers equipped on brooms,suction nozzle,effectively dust suppression.
Famous chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, Sino truk,Shacman,etc.
Key features:
* Euro 4 or EURO 5 engine, 120HP or 130HP isuzu 4KH1 series engine
* 57kw ISUZU vice engine
* 1.5m3 clear water tank:anti-corrosion and dust treatment
* 4m3 garbage container: double inner tank made of stainless steel, with filter screen inside
* Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.
* Max sweeping width2.8m
PRODUCT SPECIFICATIONS
|
General |
|||||
|
Water Tank Truck |
Chassis brand |
ISUZU |
||
|
Overall Dimension |
6200x2010x2530 |
GVW |
7300 |
||
|
Curb weight |
5050 |
|
|
||
|
Cab |
|
|
|||
|
Rated passengers |
2,3 |
Air conditioner |
Yes |
||
|
Cab type |
Single Row |
|
|
||
|
Engine |
|
|
|||
|
Fuel tyep |
Diesel |
Engine brand |
|
||
|
Power |
120hp |
Emission standard |
EURO 3,EURO 4,EURO 5 |
||
|
Chassis |
|
|
|||
|
Drive type |
4x2,4x4 optional |
Wheelbase |
3360mm |
||
|
Transmission |
5-speed gearbox,5-forward & 1-reverse |
Gearbox type |
Manual |
||
|
Tyre Specification |
7.00R16 |
Max speed |
95km/h |
||
|
Paint |
As your requirement |
|
|
||
|
Superstructure |
|
|
|||
|
Water tank volume |
1.5CBM |
||||
|
Dust tank volume |
4cbm |
||||
|
Vaccum width |
3200mm |
||||
|
sweeping speed |
5-20km/h |
||||
|
max suction particles |
100mm |
||||
|
Vacuum capacity |
45000-90000m2/h |
||||
|
Dumping angle |
≥45° |
||||
|
Sweeping efficiency |
≥99% |
||||
| Brooms | 2set each side | ||||
| Auxiliary engine | JMC Engine(ISUZU technology) 77HP,Super powerful | ||||
|
Remarks |
1. Any part can be customized depending on customers' demand. |
||||

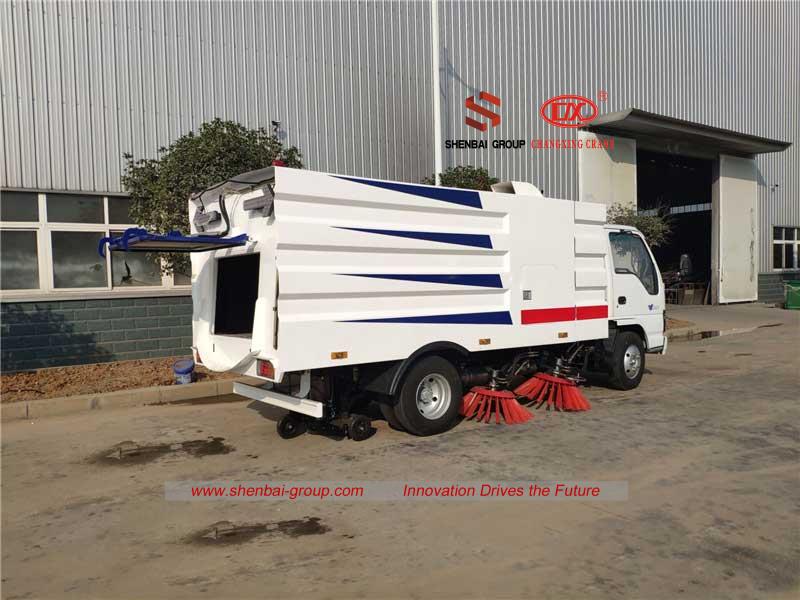

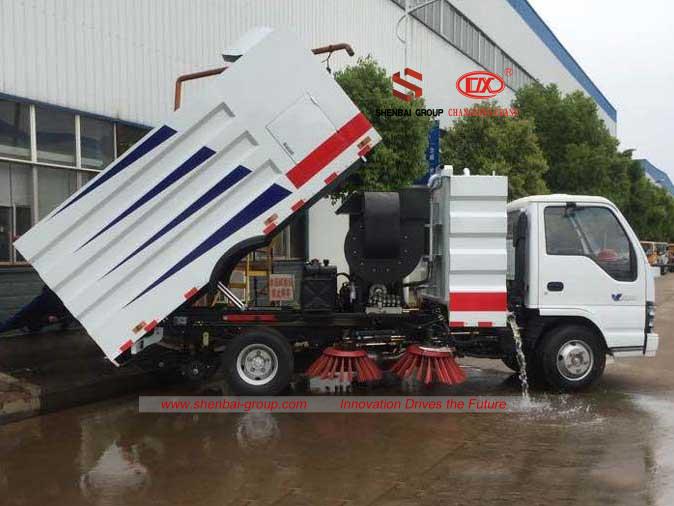

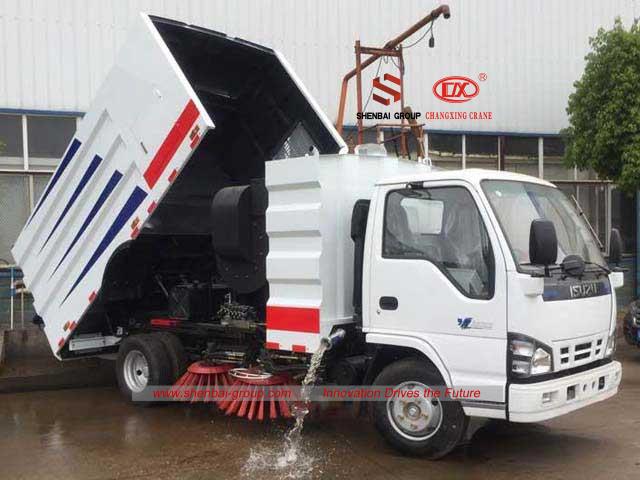

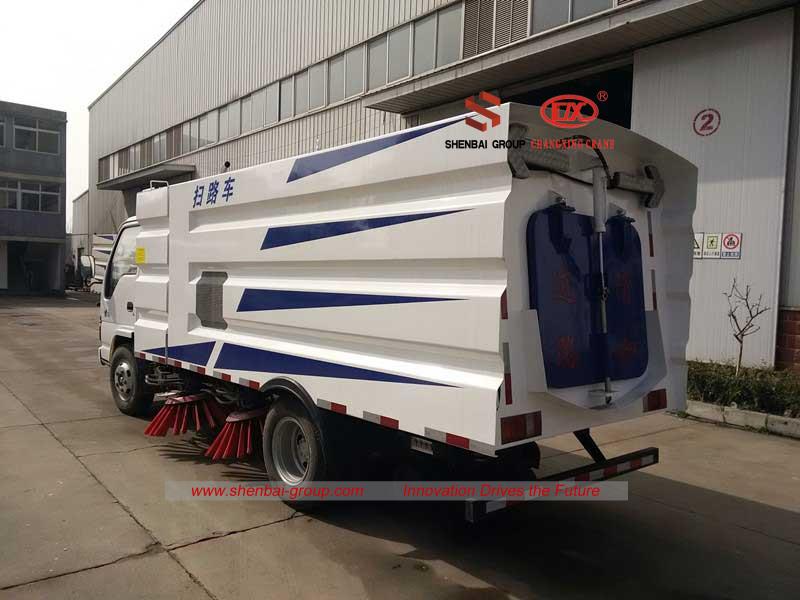

Details Images
