Description
| The General Technical Parameters | |||
| Vehicle Brand | SHENBAI | ||
| Chassis Brand | Shacman F3000 | ||
| Overall Dimension | L×W×H, 10000×2550×3850MM | ||
| Cargo box size | L×W×H, 6400*2300 mm*550mm | ||
| G.V.W | ≤25 000 kg | ||
| Curb weight | 13.200kg | ||
| The Chassis Specifications | |||
| Steering wheel | 6X4, Left Hand Drive | ||
| Wheelbase | 5700+1375mm | ||
| Transmission | Manual, FAST 12 Speed | ||
| Tire Specs Number | 11.00R220, 6+1 (spare tire) | ||
| Front / Rear Axle Load | 7500 / 16000kg | ||
| Brake type | Air brake | ||
| The Cabin | |||
| Cab type | HW76 One row and a half deluxe cab(with sleeping berth) | ||
| Number of Passengers | allowable 3 passengers | ||
| Air Conditioner | Heating/cooling air condiioner | ||
| The Engine Specifications | |||
| Engine | Fuel Type | Diesel | |
| Brand /Model | WEICAHI WP10.380E22 | ||
| Horsepower | 380 hp/280kW | ||
| Displacement | 9726ml | ||
| Engine Type | In-line 6 cylinder, supercharged and intercooled | ||
| Emission standard | EURO 2 | ||
| The Upper Structure Specifications | |||
| Crane | Brand | Chinese Famouse Brand- SHENBAI | |
| Model | BSQS250-4 10Ton | ||
| Boom Type | Straight Arm | ||
| Rated lifting capacity | 10000 Kg@2.5m | ||
| Boom QTY | 4 booms | ||
| Lifting height | 16.5m | ||
| Full boom length | 14.6m | ||
| Front Outrigger span (fully extended) | 5850mm | ||
| Hydraulic leg | 2Front +2 Rear Hydraulic Legs | ||
| Other Standard | High seat,free cooling fan, free hydraulic pump | ||
| Cargo Box | Dimension | 5600*2300*550mm | |
| Load capacity | 10 Tons | ||
| Material | Carbon steel plate,5 mm bottom plate,3mm side plate | ||
| Optional | **Knuckle boom crane **Hydraulic tipper box. **Box thickness according to requirement **Box height could be nominated |
||
PRODUCT SPECIFICATIONS

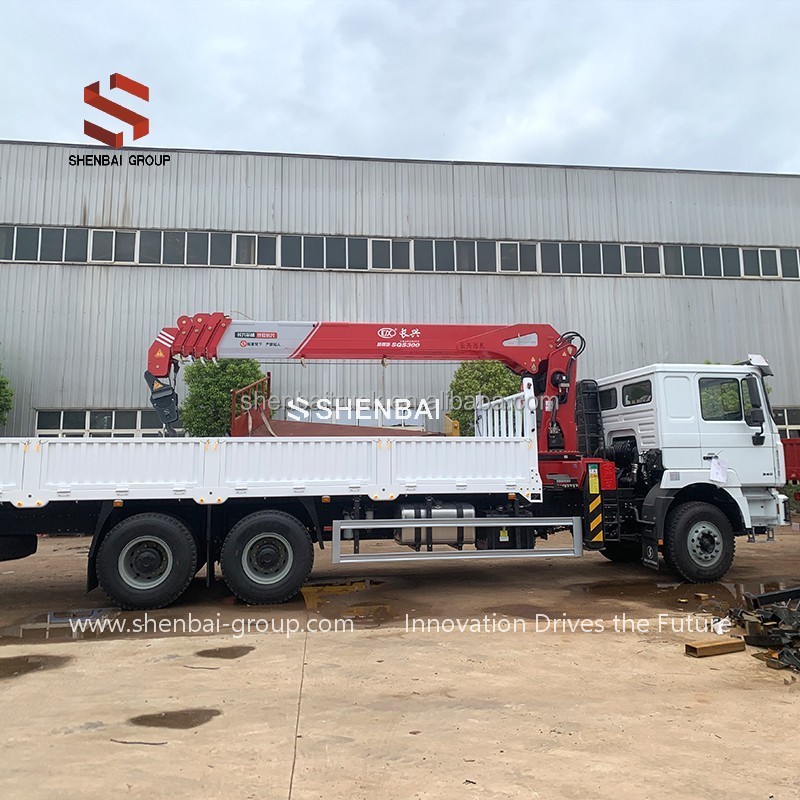

Details Images
